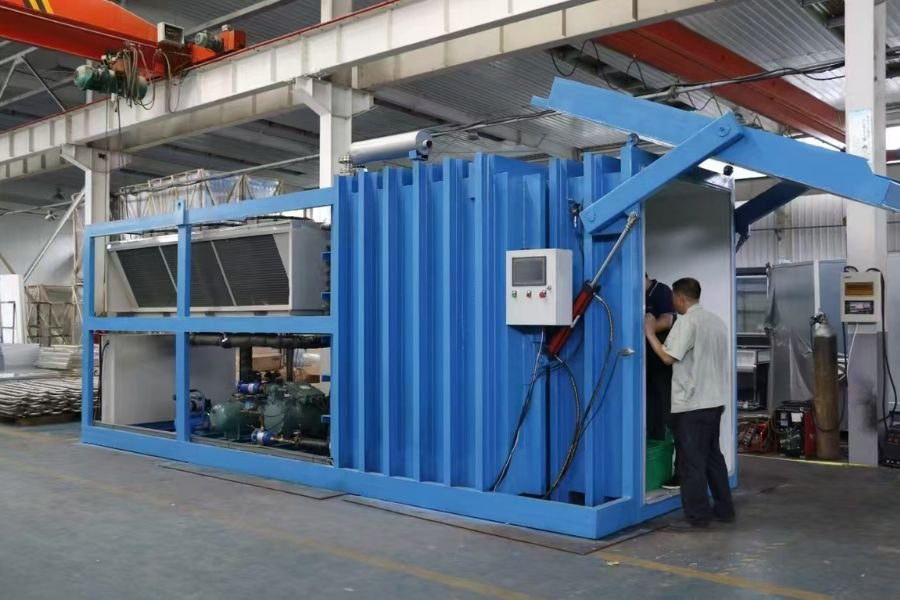

Air-cooled Vacuum Cooler
Air-cooled Vacuum Pre-cooler adopts an air-cooled condenser. It offers simpler on-site installation and operation, as it requires no water connection and can be used directly upon power supply. It is also easy to transport and suitable for vehicle-mounted applications
Air-cooled Vacuum Cooler
1. Loading Method:Direct loading by electric forklift.
2. Pre-cooling Temperature: From ambient to 2°C.
3. Batch Capacity: 1000kg ~ 3000kg (Customizable).
4. Pre-cooling Time:25 minutes.
5. Vacuum System:Busch / Leybold / Rietschle vacuum pumps (Germany).
6. Water vapor capture system: Main unit adopts BITZER semi-hermetic screw compressor.
7. Cooling Method:Air-cooled (No external water source required, flexible installation).
8. Chamber Dimensions: Customizable.
9. Door Type: Hydraulic flap door, Sliding door, or Manual door (Optional).
10. Applicable Produce: Leafy vegetables, thin-peeled fruits, edible mushrooms, etc.

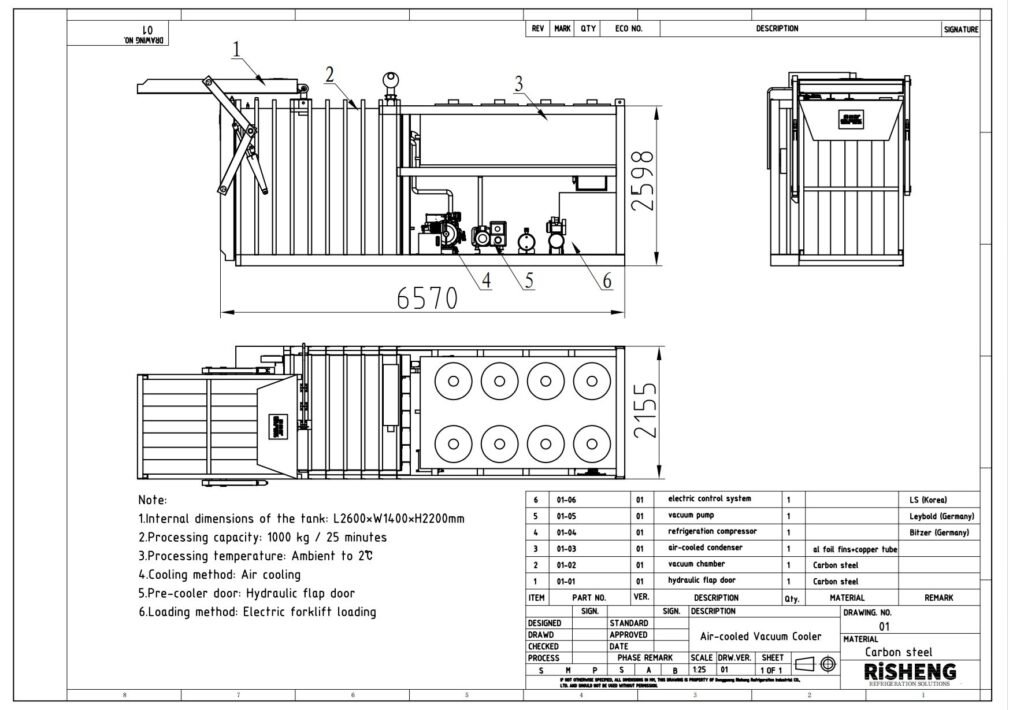

Main components of a pre-cooler:
1.Vacuum chamber

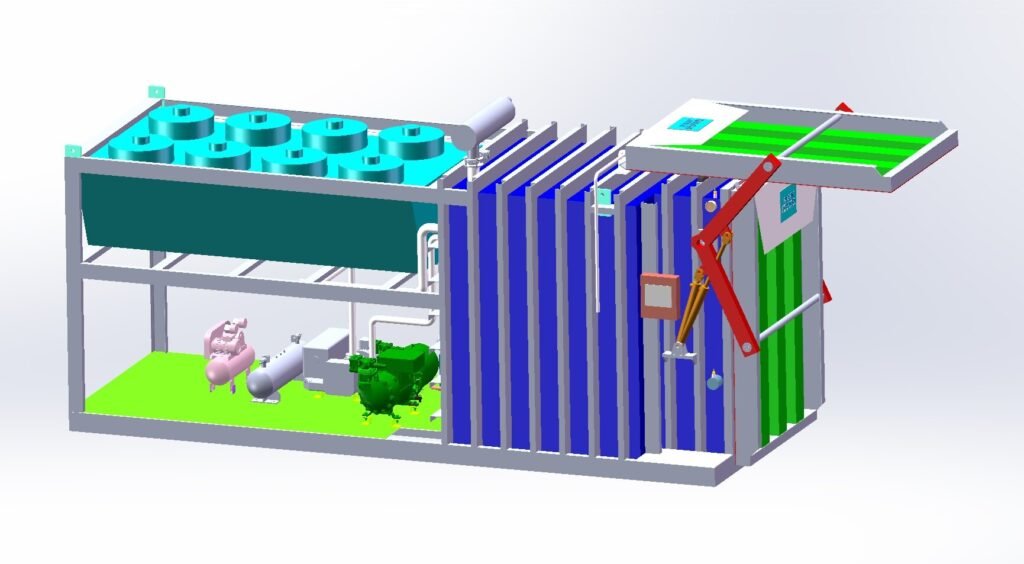

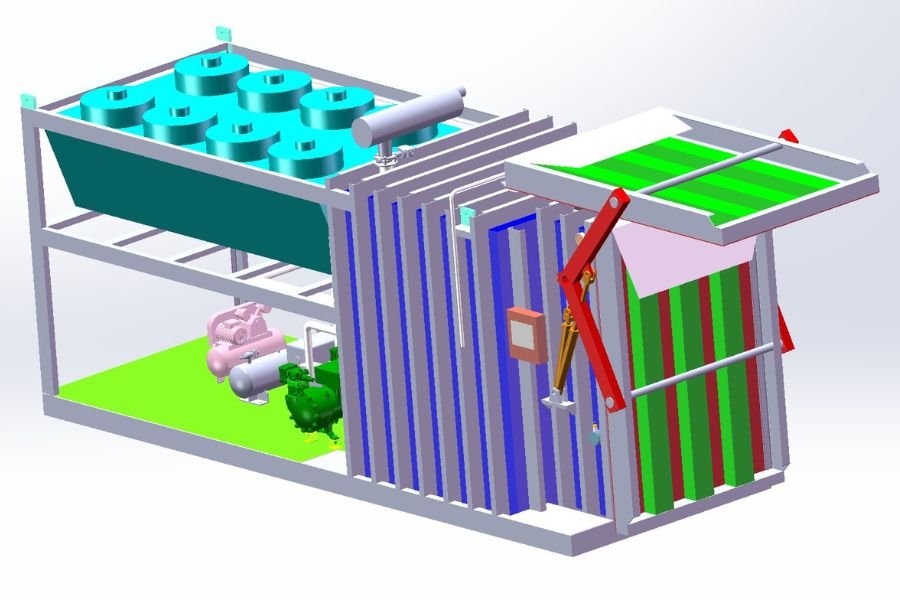

It is welded with carbon steel, and the structural frame is integrally welded with carbon steel. The pre-cooler door adopts a hydraulic flap door, as shown in the figure below:
2.Vacuum system
It adopts rotary vane oil pumps from Busch, Leybold, or Rietschle (Germany), with a specially customized design to prevent emulsification of the vacuum pump oil.
3.Refrigeration system
Refrigeration System: The system utilizes a German BITZER semi-hermetic screw compressor as the main refrigeration unit. It features an air-cooled finned condenser. The core components of the water trap (cold trap) are manufactured using a hot-dip galvanizing process, ensuring durability and high-efficiency water vapor capture.
4.Control System
Controlled by PLC + touch screen, featuring a user-friendly interface, one-touch start, and fully automatic operation.
We offer customized service solutions to meet your specific requirements, including:
- Pre-cooling duration
- Single-batch fruit and vegetable processing capacity
- Cooling method (air cooling, water cooling, or evaporative cooling)
- Loading method (plate conveying, chain plate conveying, or forklift loading)
- Door type (vertical lifting door, sliding door, or hydraulic flap door)
- Appearance color and electrical parameters (50Hz/60Hz)
